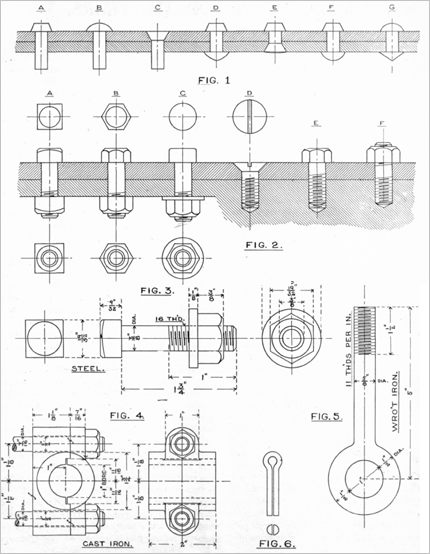

Machine Drawings

Provide effective solutions for Mechanical Drafting and Detailing Services. We can produce industrial drawings of mechanical parts with our wide range of drafting software. Whether mechanical designing, drafting or transferring technical drawings to computer, all are performed to your company standards and specifications. Or as per ASME,DIN, JSME, BIS,ISO standards.

  • Shop Drawings.
  • Raw casting and machined components drawings.
  • Patent Drawings.
  • Steel Fabrication Drawings.
  • Fixture detailing.
  • Plant layouts.
  • P & ID drawings and weld maps.
  • On-site Drafting Support.
